House Bolting

Services | Comments Off on House Bolting
House Bolting


 House bolting, or earthquake retrofitting, is a process that literally ties a home together. It increases the resistance to earthquake damage and decreases the risk of injury. In short, it significantly strengthens your home.

We used Weinstein to earthquake retrofit our house. First, my intention was to do it myself…but I concluded it was simply not worth it. Top professional crew. They did it in a day. I really love what they did.

Sherman Oaks, CA

Weinstein Retrofitting Systems is the premier residential and commercial seismic retrofitting specialist in Los Angeles, Orange and Ventura County and the surrounding areas in California.

House Bolting strengthens a homes foundation, keeping it stronger during an earthquake.

Without proper reinforcement, homes can collapse during seismic activity.

Since the Northridge earthquake of ’94, we have successfully retrofitted over 7000 homes in accordance with LA Department of Building & Safety, as well as FEMA’s guidelines.

A safe home is one that can withstand earthquake shocking forces and is a home built on a firm foundation. By securely fastening the house to the foundation and securely connecting the house components together, the chances of withstanding the next earthquake are greatly improved.

This is achieved by installing and bolting the house to its foundation with varying styles of foundation anchors and straps. These anchors and straps suppress horizontal and vertical movement.

Contact Weinstein Retrofitting Systems for a Free Foundation Inspection and Seismic Retrofit Analysis in California today!

TopWhat Really Bolts Your Home To The Foundation?

House Bolting Protects You, Your Family, and Your Home

House bolting prevents a home from sliding or falling off of its foundation.

Most residential homes are either built on slab or raised foundations. Weight is the main factor that keeps a home from moving or sliding off of its foundation.

Bolting is the process of fastening the house to the foundation perimeter. House bolting is the best measure you can take to prevent damage inflicted by:

Earthquakes

Natural house settling

Water damage



House bolting helps prevent slippage during an earthquake.

Without proper care, a foundation can crack and leave a home without necessary support.

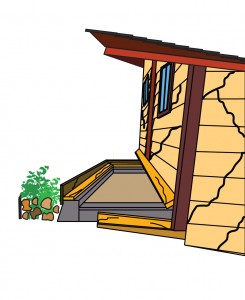

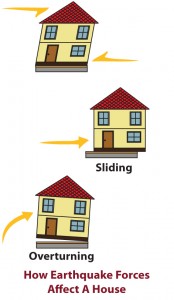

Sliding failure occurs when a house is not securely bolted to the foundation. The sideways movement of an earthquake can cause the entire building to literally slide off its foundation (while remaining intact)(see drawing). Sliding failures are prevented by installing foundation bolts and framing anchors that tie the house to the foundation and keep it from shifting.

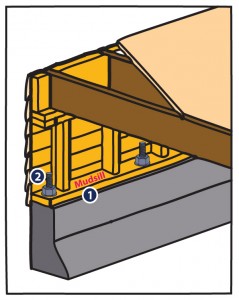

If the mud-sill (the lowest timber supporting a building, located at or below ground level of your home) (see 1), is not bolted, the lateral loads (back and forth motions) of an earthquake can shake the house off its foundation and cause it to collapse. Bolting down the mud-sill to the foundation is accomplished with the use of A Degree diameter foundation bolts with nuts and square washers.(see 2)

Rusted House Bolting and How We Can Help

House bolting is only effective if properly maintained. Rusted bolts will not protect your home.

A rusted bolt will not hold the mudsill in place as well as a new bolt.



The rusting of bolts is a common problem that occurs in areas with high moisture, regardless of which type of bolt is used.

If the bolt and the nut are corroded and stuck together, then the bolt should be replaced. Furthermore, in the process of removing the bolt and replacing the washers, many rusted bolts will snap off. Even though the bolts look sound, they can be rusted away where the bolt and the concrete meet – thus, where no one can see them.

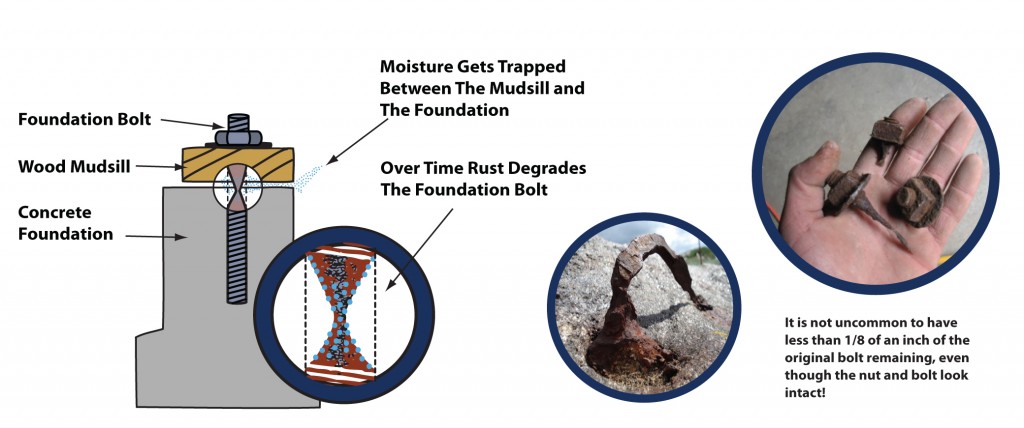

In the drawing below,  you can see what happens to the bolts that hold your home over time:

House bolting needs to be maintained to remain effective.

Overtime, bolts will rust.

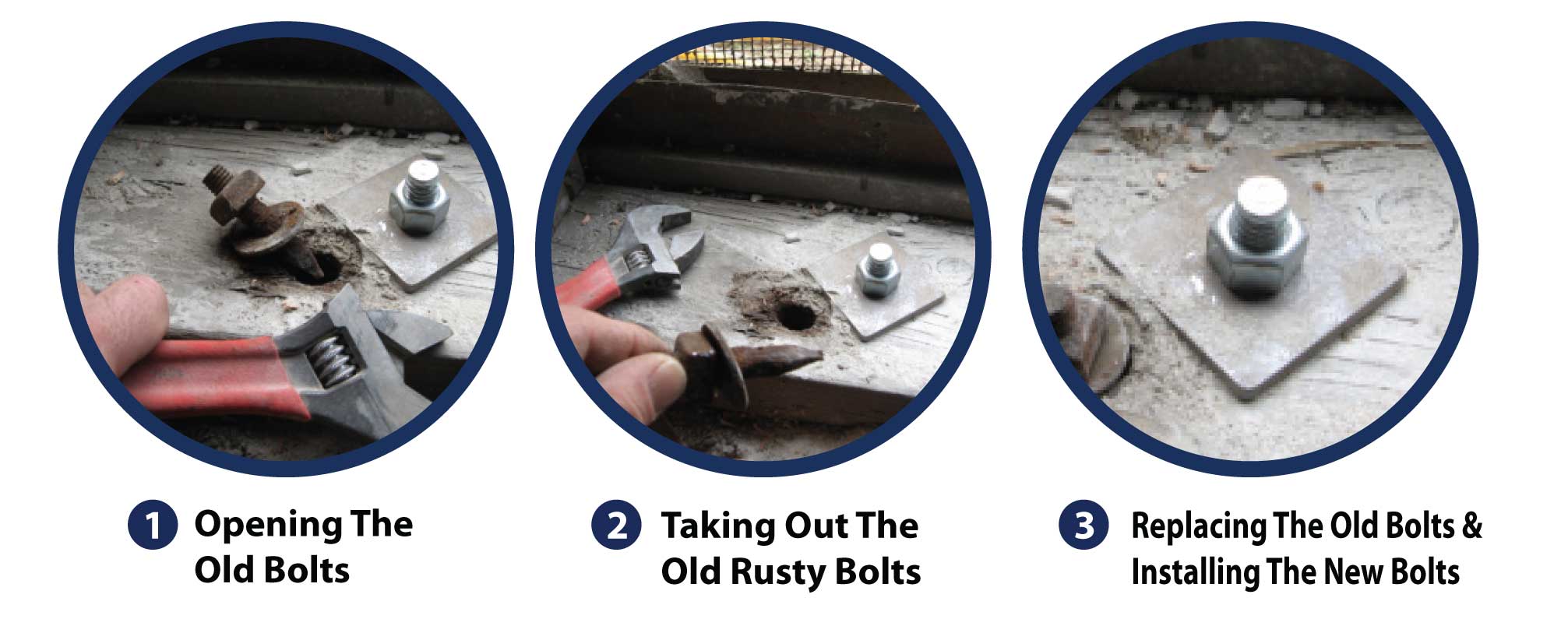

In the pictures down below you can see how is the process of replacing the bolts is being done:

house bolting maintenance can be done easily by replacing the bolts.

Bolts should be replaced as needed.

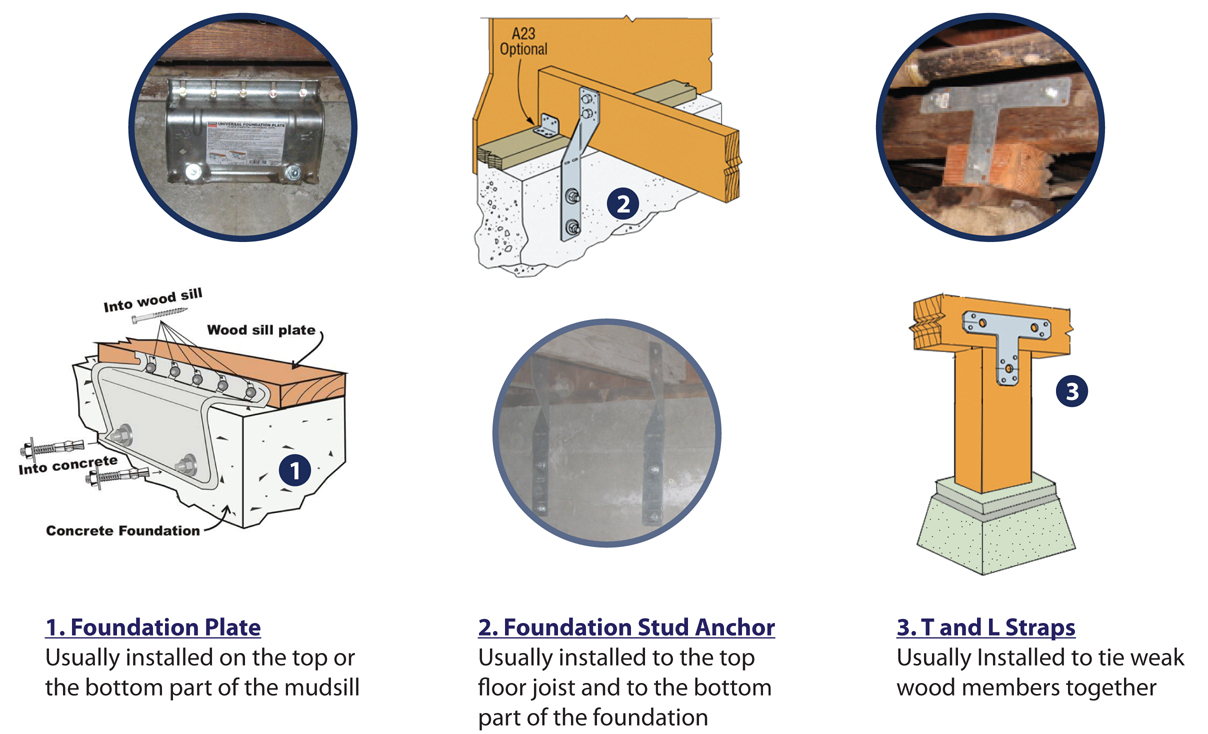

On many homes, it is not possible to install foundation bolts because there is too little room between the top of the mud-sill and the floor of the house. This is because either there is no cripple wall or the cripple wall is extremely short. In these cases, special hardware known as “foundation anchor plates” are used to secure the house to the foundation.

When house bolting is not possible, foundation anchor plates can be installed.

When house bolting is not possible, foundation anchor plates can be installed.



TopCripple Wall Bracing:

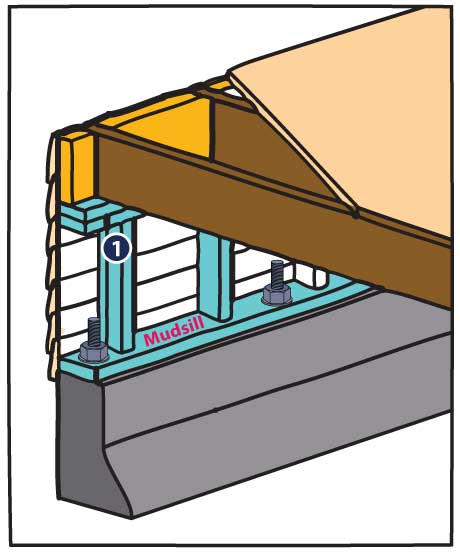

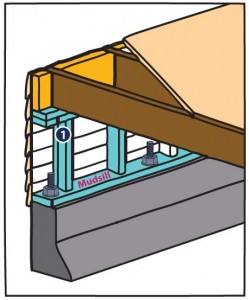

An area of concern is providing strength and stability to the upright pieces of lumber that form the cripple wall (the area in blue).

Cripple walls are only a suitable replacement when house bolting is not practical if they are reinforced.

Brace your cripple walls to ensure effectiveness.

Cripple walls are short walls that connect your foundation to your floor base. Unreinforced cripple walls can be destroyed by the sideways movement created by an earthquake, since they lack bracing of any kind.The result can knock your home off its foundation and do tens of thousands of dollars in damage. This can be avoided by bracing the cripple wall with plywood shear panels. Walls braced with plywood are called “shear walls” because they resist the “shear forces” generated by earthquakes. Plywood reinforcement on the inside face of the cripple-wall studs provides increased strength and can save a house from considerable damage during a quake.

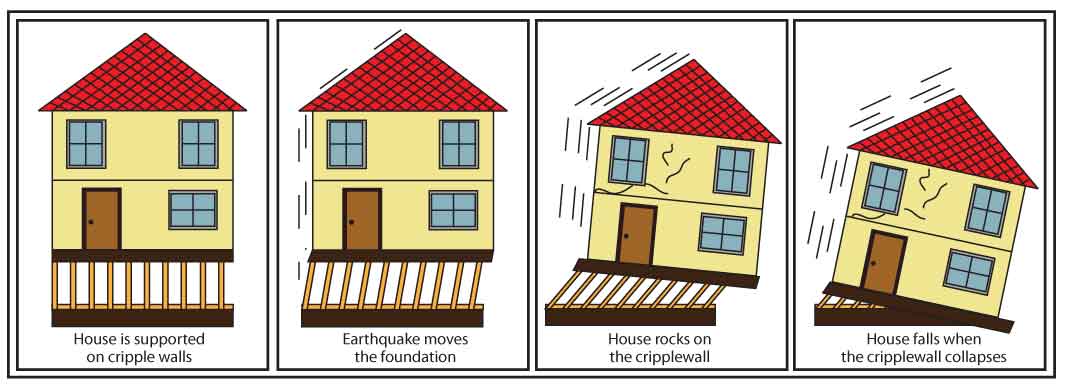

Down below in the drawing you can see the earthquake  effects on the house cripple walls:

Cripple walls need to be reinforced, for example using house bolting, to ensure their effectiveness.

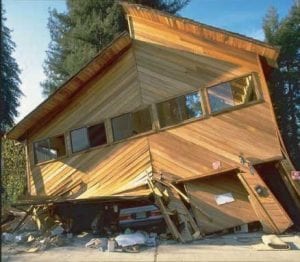

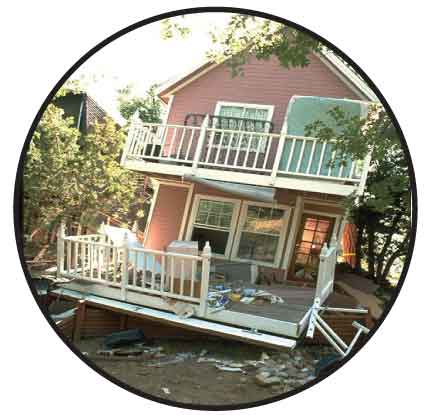

When cripple walls are not reinforced, homes can slide off of the foundation during a seismic event.



This happens because the siding used on older homes, whether wood or stucco, is relatively weak and provides little support or bracing to the cripple wall.  Structural grade plywood properly nailed on the cripple wall in the form of a shear wall is almost 20 times stronger than typical siding material. That is a 200% (two hundred percent) increase in strength.



house bolting can help but the home needs to be strengthened throughout.

A home needs to be braced on all sides to be considered secure.

The stiffening effect is accomplished in the lengthwise direction of the plywood, which means that plywood running along the side walls of a house will brace it in the front-to-back direction while plywood running along the front and back walls will brace the house in the side-to-side direction. Accordingly, it is important to brace all sides of a house for the best seismic protection.

Following the principle that a chain is only as strong as its weakest link, it is also important to complete the connection from the foundation, through the walls, and into the overhead floor framing.

This will provide for good load transfer. Load transfer is an engineering term which means the effects of the earthquake movements are transferred from one of the building components into the next ground to foundation, foundation to sill, sill to wall, wall to floor. Good detailing of all of these connections is an important part of the retrofitting technique.

How was your experience with Weinstein Retrofitting Systems?

Earthquake Retrofitting Inspector

It’s just perfect. Very pleased. Guys were wonderful. Clean. I feel safer now.

Encino, CA 91316

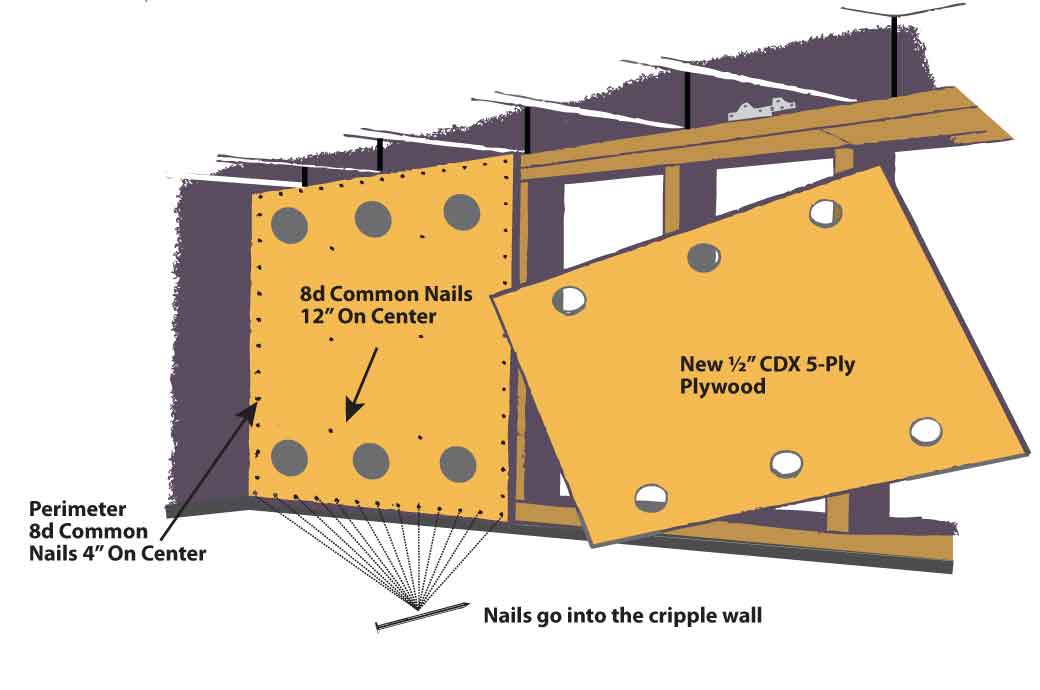

The Uniform Code of Building Conservation and the Los Angeles Building Code, specify the type of plywood to be used in building shear walls (5 Ply plywood), the types of nails to be used, spacing of the nails, methods of attaching shear panels to the mudsill, and methods of attaching them to the floor of the house (8d common Nails).

The Uniform Code of Building Conservation and the Los Angeles Building Code for how to build a cripple wall

The Uniform Code of Building Conservation and the Los Angeles Building Code for how to build a cripple wall

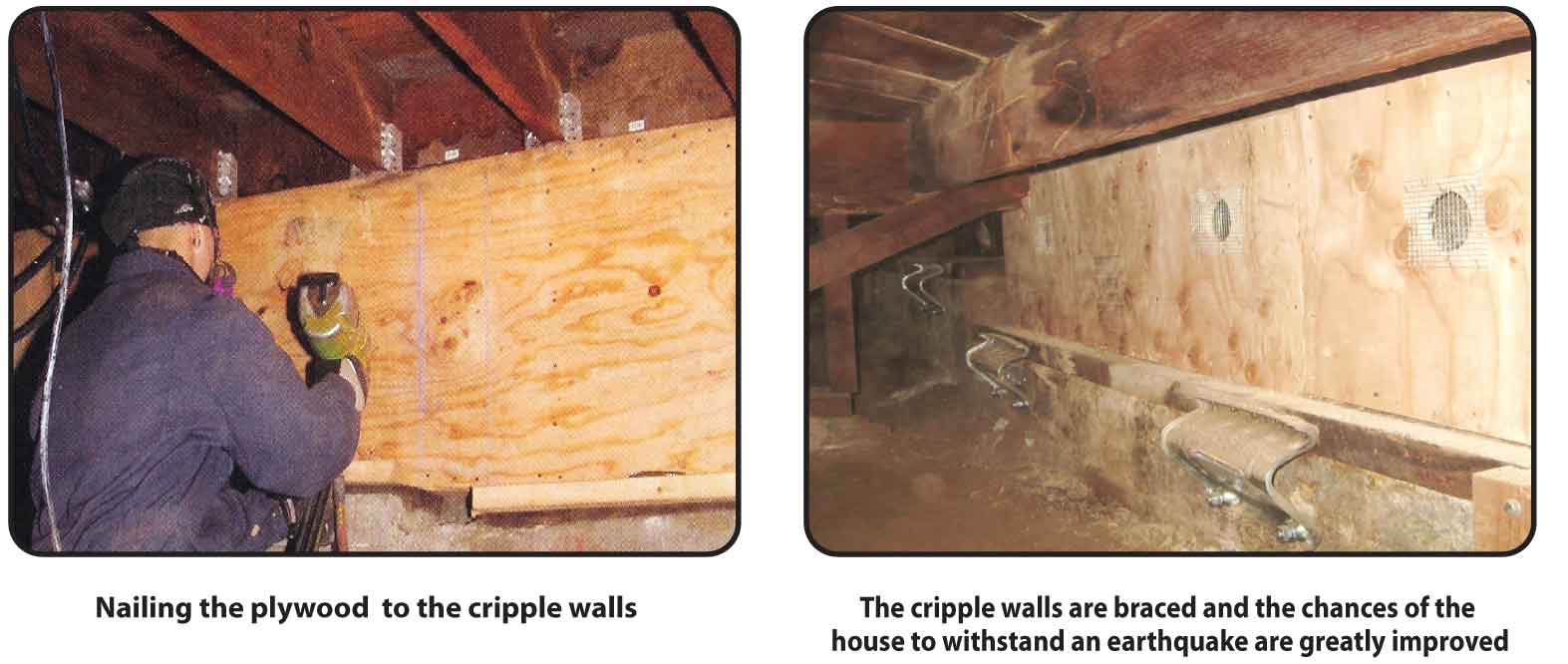

Weinstein Construction's process to reinforcing a cripple wall.

Weinstein Construction’s process to reinforcing a cripple wall.
